Firefighting Equipment-Approved Valves

■Firefighting Equipment-Approved Valves
602A Functional maintenance and safety of equipment used for fire and disaster prevention is ensured as per Article 12, Paragraph 1, Item 6 and Article 31, Item 5, of the Construction Regulations in the Fire Services Act. The Fire Equipment and Safety Center of Japan certifies valves according to the above rule. Products whose performance is deemed appropriate for use as fire and disaster prevention equipment are affixed with a certificate. Only highly reliable certified valves should be used for firefighting equipment piping.

－Performance-certified firefighting equipment products with verified safety and reliability－

  • 602A
  • Certification number:VA-055
  • Max. service pressure: 1.0MPa

602A

10K specification
Actuator:Lever operation type (50 A to 150 A), Gear operation type
Options:Gear-type limit switch (open/close, open, close)

Size:40 A to 200 A
Flange standards:JIS 5K,10K
Service temperature range:EPDM: 0°C to 120°C
Standard material
・Body:ADC12
・Disc:SCS14
・Stem:SUS420J2
・Seat:EPDM

  • 616M
  • Certification number:VA-057
  • Max. service pressure: 1.4MPa

616M

10K specification
Actuator:Lever operation type (50 A to 150 A), Gear operation type
Options:Gear-type limit switch (open/close, open, close)

Size:50 A to 300 A
Flange standards:JIS 5K, 10K
Service temperature range:NBR: 0°C to 70°C
EPDM: 0°C to 120°C
Standard material
・Body:FCD450
・Disc:SCS13
・Stem:SUS403
・Seat:EPDM, NBR

  • 622H
  • Certification number:VA-058
  • Max. service pressure: 2.0MPa

622H

20K specification
Actuator:Lever operation type (50 A to 150 A), Gear operation type
Options:Gear-type limit switch (open/close, open, close)

Size:50 A to 200 A
Flange standards:JIS16K, 20K
Service temperature range:NBR: 0°C to 70°C
EPDM: 0°C to 120°C
Standard material
・Body:FCD450
・Disc:SCS13
・Stem:SUS630
・Seat:EPDM, NBR

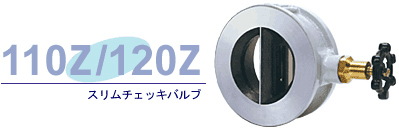

110Z / 120Z

  • 110Z
  • Certification number: VA-075
  • Max. service pressure: 1.4MPa

10K specification

Size:50 A to 200 A
Flange standards:JIS10K
Service temperature range:0°C to 120°C
Standard material
・Body:FCD450
・Disc:SCS13A
・Seat:NBR, EPDM

  • 120Z
  • Certification number: VA-076
  • Max. service pressure: 2.8MPa

20K specification

Size:50 A to 200 A
Flange standards:JIS　16K, 20K
Service temperature range:0°C to 120°C
Standard material
・Body: FCD450
・Disc: SCS13A
・Seat: NBR, EPDM

5400シリーズ

  • 5452
  • Certification number:VA-061
  • Max. service pressure: 3.0MPa

30K specification
Actuator:Lever operation type
Options:Gear-type limit switch (open/close, open, close)

Size:80 A to 200 A
Flange standards:JIS 16K, 20K, 30K
Service temperature range:–50°C to +230°C
Standard material
・Body: SCS13
・Disc: SCS13
・Stem: SUS 630
・Seat: PTFE (black)

  • 5422
  • Certification number:VA-059
  • Max. service pressure: 2.0MPa

20K specification
Actuator:Lever operation type (50 A to 150 A), Gear operation type
Options:Gear-type limit switch (open/close, open, close)

Size: 50 A to 200 A
Flange standards: JIS 10K, 16K, 20K
Service temperature range: –50°C to +230°C
Standard material
・Body: SCS13, 14
・Disc: SCS13, 14
・Stem: SUS 630
・Seat: PTFE (white/black)

  • 5423
  • Certification number:VA-060
  • Max. service pressure: 2.0MPa

20K specification
Actuator:Lever operation type (80 A to 150 A), Gear operation type
Options:Gear-type limit switch (open/close, open, close)

Size:80 A to 200 A
Flange standards:JIS 10K, 16K, 20K
Service temperature range:–50°C to +230°C
Standard material
・Body: SCS13, 14
・Disc: SCS13, 14
・Stem: SUS 630
・Seat: Metal
